💧 Designed for Water Treatment & Environmental Protection
Professional Solid-State Detection: Highly customized as the core precision sensing component for environmental equipment and water treatment automation systems.
Versatile Liquid Compatibility: Perfectly adapts to various complex water environments, including raw water, purified water, sewage, and reclaimed water.
🛡️ 316 Stainless Steel & Extreme Durability
Premium 316 Stainless Steel Construction: Built with high-quality 316 stainless steel, offering superior waterproofing, rust resistance, and chemical corrosion resistance.
High Pressure Resistance up to 17 MPa: Specifically engineered for high-pressure working conditions. It withstands extreme pressure environments, ensuring outstanding reliability and service life even under harsh industrial scenarios.
⚙️ Advanced Optical Tech & Maintenance-Free
Infrared Optical Refraction Principle: Utilizes cutting-edge sensing technology with absolutely no moving mechanical parts inside.
Eliminates Traditional Pain Points: Completely prevents traditional failures such as float jamming, mechanical wear, and signal drift, guaranteeing continuous and reliable monitoring.
🤝 Flexible Delivery & Precise Control
Flexible Supply Options: Supports standard mass production as well as personalized customization services to meet diverse requirements.
High-Precision Smart Control: Delivers stable, high-precision liquid level detection and automatic control functions, comprehensively upgrading system intelligence.
Product Features
Industrial Stainless Steel Corrosion Resistance
The whole body adopts premium stainless steel structure, which is resistant to oxidation, scaling and corrosion from acidic, alkaline and impurity-containing water quality. It can operate stably for a long time in complex water treatment environments without rust or deformation, lowering equipment maintenance and replacement costs.
Solid-State Non-Mechanical Design & High Reliability
Built with pure infrared optical sensing structure without floating balls, springs or other movable parts. It avoids mechanical failure, jamming and wear caused by long-term water flow impact and equipment vibration, achieving ultra-low failure rate and maintenance-free operation.
High Precision & Rapid Response Detection
Equipped with high-sensitivity infrared optical chip, it realizes real-time and accurate identification of water level empty, low and full status. With ultra-fast signal response, it effectively supports automatic water supply, overflow prevention and water shortage protection for water treatment equipment, ensuring stable system operation.
Strong Anti-Fouling & Environmental Adaptability
Optimized smooth probe structure resists sludge, algae and impurity adhesion in sewage and reclaimed water scenarios. It features strong anti-electromagnetic interference capability and wide temperature adaptability, suitable for long-term continuous operation in various harsh water treatment and environmental protection working conditions.
Working Principle
⚙️ Working Principle
Based on the differences in total internal reflection and refraction of infrared light between air and water media, it achieves precise liquid level state switching:
🔦 Stable Light Emission: The built-in infrared LED continuously emits a stable light signal to the precision prism probe.
☁️ In Air (Total Internal Reflection): When the probe is not in contact with water, the infrared light undergoes total internal reflection inside the prism. It is normally received by the photoelectric receiver, outputting a fixed electrical signal.
💧 Submerged in Water (Refraction): As the water level rises and covers the probe, the refractive index of the external medium changes, breaking the total reflection condition. Most of the light refracts into the water, preventing the receiver from capturing a valid signal.
📶 Signal Switching & Control: Once the system detects the change in the optical signal, it instantly converts it into a standard digital signal to trigger a state flip, enabling real-time water level monitoring and precise automation control.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
PLS-SS102 |
|
Product Name |
Optical Infrared Water Liquid Level Sensor |
|
Housing Material |
316Stainless Steel |
|
Detection Medium |
Tap Water, Purified Water, Sewage, Reclaimed Water |
|
Detection Principle |
Infrared Optical Refraction Sensing |
|
Response Time |
≤5ms |
|
Working Voltage |
3.3V-24V DC |
|
Working Current |
≤20mA |
|
Operating Temperature |
-20℃ ~ +80℃ |
|
Output Signal |
Digital Switch Signal |
|
Protection Grade |
IP67 |
|
Service Life |
≥1,000,000 Switching Times |
|
Overall Length |
60mm (Standard) |
|
Probe Diameter |
8mm (Standard) |
|
Thread Specification |
M10*1.0 (Standard) |
Application Fields
The PLS-SS102 Optical Infrared Water Liquid Level Sensor is specially developed for water treatment and environmental protection industries, serving as a key automatic monitoring component for water environment and water resource treatment equipment. It is widely applied in sewage treatment equipment, purified water systems, environmental protection water tanks, circulating water equipment, rainwater recovery systems, industrial wastewater treatment devices and municipal environmental protection supporting equipment. It realizes real-time water level monitoring, automatic water replenishment, overflow protection and water shortage alarm functions, effectively preventing equipment idle running, water resource waste and system operation failures. It greatly improves the automation level and operation stability of water treatment and environmental protection equipment, supporting efficient and standardized operation of environmental protection water treatment projects.

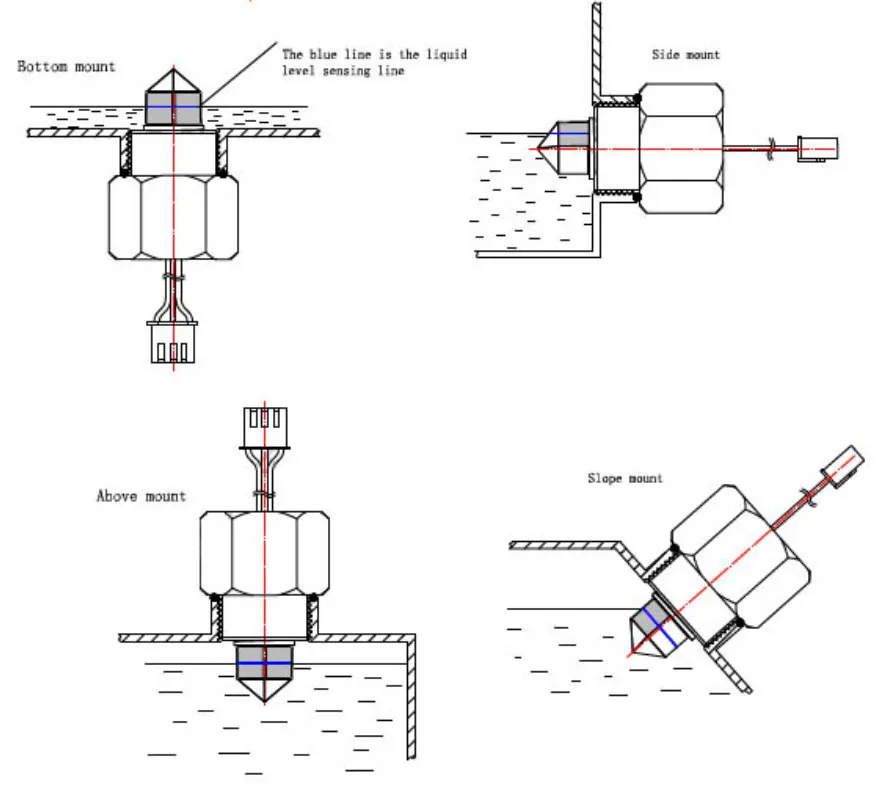

Installation Method
The PLS-SS102 sensor supports diverse and convenient industrial installation methods, adapting to various water treatment equipment structures. The standard version adopts threaded locking installation, which can be stably fixed on reserved mounting holes of water tanks, filter tanks and circulating water equipment. It supports vertical top installation and side horizontal installation to meet different equipment layout requirements. During installation, ensure the optical detection probe is placed in the effective monitoring area, avoiding long-term contact with sediment deposition areas to prevent signal interference. Featuring compact structure, firm installation and vibration resistance, it is suitable for narrow internal space of environmental protection equipment, with simple operation and convenient later disassembly, cleaning and maintenance.
Customizable Options
1. Structural & Dimensional Customization
Support customized probe length, overall size, thread specifications (M8/M10/M12 optional) and installation interface to match different water tank volumes and equipment installation standards of water treatment projects.
2. Electrical Parameter Customization
Customize working voltage range, output signal mode, wire length and wiring definition to seamlessly adapt to various environmental protection PLC control systems and automatic water treatment equipment circuits.
3. Working Condition Adaptation Customization
Provide customized enhanced anti-fouling, high-temperature resistant and strong corrosion-resistant versions, targeting special working conditions such as high-impurity sewage, acidic and alkaline water quality in environmental protection and water treatment scenarios.
Why Choose Us
Firstly, we are a professional manufacturer dedicated to optical infrared water level sensors, focusing on the R&D and production of level detection components for water treatment and environmental protection industries for many years. We deeply understand the pain points of water quality impurity interference and equipment long-term operation in environmental protection scenarios, and our products are highly targeted with more reliable performance than ordinary civilian sensors. Secondly, we adopt direct factory sales with no intermediate links, providing cost-effective industrial-grade products.
In addition, we support flexible OEM and ODM customized services, which can quickly respond to personalized matching needs of various environmental protection and water treatment equipment. We have a complete service system, providing professional pre-sales scheme optimization, in-sales production tracking and after-sales technical maintenance. With stable product quality, efficient delivery cycle and professional technical support, we have established long-term cooperative relations with many environmental protection equipment manufacturers and water treatment engineering companies.
FAQ
Q1: Can I visit your factory?
A: Absolutely. We operate our own manufacturing facility in Zhong Shan, China. We also maintain strategic partnerships with several renowned international and domestic brands in the instrumentation sector. If you plan to visit, feel free to fly into Shenzhen Airport; we can arrange a pickup. You're always welcome.
Q2: What are your main advantages?
A: We bring over 9 years of expertise in the liquid level sensor industry. As a professional manufacturer, we guarantee competitive pricing and strict quality control. Additionally, we offer comprehensive OEM services and dedicated after-sales support to ensure your satisfaction.
Q3: Do you accept OEM/ODM orders?
A: Yes, we gladly accept OEM branding requests. The best part? We do not charge any additional fees for custom branding. Whether you need a modified wire length or a specific housing, our professional R&D team can assist with your customization needs.
Q4: How long is your price quotation valid?
A: Our quotations are typically valid for 6 months. However, due to potential fluctuations in raw material costs, we recommend confirming your order within this timeframe to lock in the agreed price.
