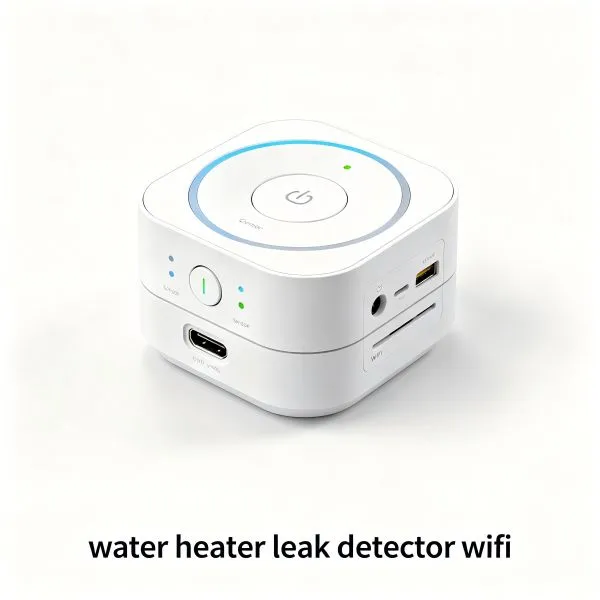

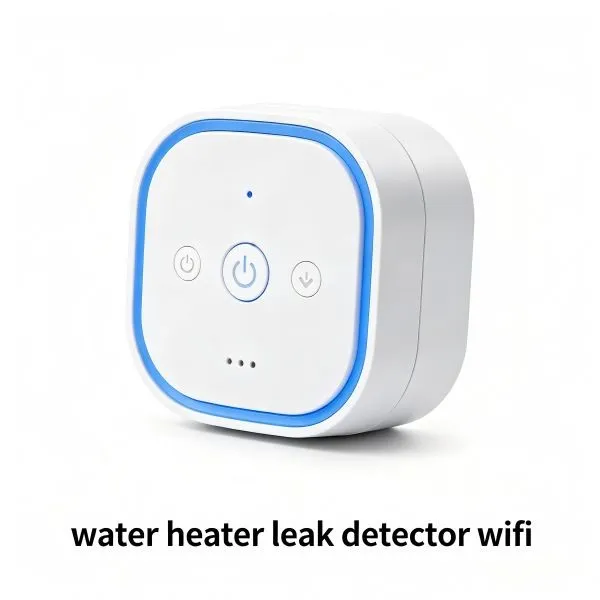

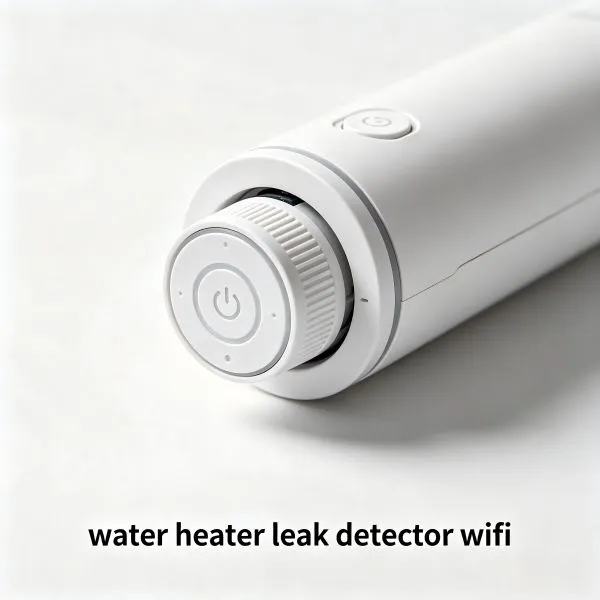

The LC-601 WiFi water heater leak detector is a professional smart monitoring sensor independently developed for water heater anti-leakage and heating pipe network water leakage prevention. Adopting high-sensitivity water sensing probe technology and stable 2.4G WiFi wireless transmission design, this detector can real-time monitor water seepage, dripping and overflow faults of water heaters and heating pipe systems. It supports remote mobile app alert push and local sound-light dual alarm, effectively avoiding property loss and equipment damage caused by undetected water leakage. Featuring compact structure, industrial-grade durability and plug-and-play use, it adapts to various harsh humid environments. Besides standard finished products, we also provide full-scenario customized services to meet the personalized detection demands of different heating and water heater equipment scenarios.
Product Features
Real-time WiFi Remote Alert Built-in high-stability 2.4G WiFi module, no gateway required for quick network connection. Once water leakage is detected, the device instantly pushes alarm notifications via mobile app, realizing 24/7 remote monitoring and solving the pain point of unattended on-site leakage failure.
High-sensitivity Accurate Detection
Equipped with industrial-grade water sensing probe, it can accurately capture tiny water seepage and dripping phenomena, with fast response speed and no missing detection. It supports all-round leakage monitoring at the bottom and pipeline joints of water heaters.
Dual Local & Remote Alarm Mechanism
Integrated 100dB high-decibel buzzer and flashing LED indicator, realizing on-site sound-light reminder. Cooperated with mobile app push and message alert, dual protection ensures no leakage alarm omission.
Industrial Waterproof & Durable Design
Adopting IP66 waterproof housing, it is dust-proof, moisture-proof and corrosion-resistant, perfectly adapting to humid and closed installation environments such as water heater rooms and heating pipe wells. It supports long-term stable operation without frequent maintenance.
Easy Operation & Low Power Consumption
Plug-and-play installation with simple network configuration. Low-power chip design supports long-term battery standby, with low power consumption and long service life, reducing frequent battery replacement costs.
Working Principle
The LC-601 WiFi water heater leak detector adopts contact water sensing detection principle. When water leakage occurs in the water heater or heating pipeline and touches the sensor probe, the probe will generate resistance signal change, which is instantly captured and identified by the internal control chip. After confirming the leakage signal, the device triggers the local sound-light alarm synchronously, and uploads the leakage fault data to the cloud platform via WiFi. The cloud system pushes real-time alarm reminders to the user's mobile app, enabling users to quickly perceive leakage faults and carry out maintenance. When the leakage problem is solved and the probe is dry, the sensor will automatically reset and return to normal monitoring state.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
LC-601 |
|
WiFi Frequency |
2.4GHz (not support 5GHz) |
|
Alarm Volume |
100dB |
|
Detection Sensitivity |
High-sensitivity tiny water seepage detection |
|
Waterproof Grade |
IP66 |
|
Working Voltage |
DC 3V (AAA battery powered) |
|
Standby Current |
≤10μA |
|
Working Temperature |
-10℃ ~ +60℃ |
|
Working Humidity |
10%RH ~ 95%RH (non-condensing) |
|
Alarm Mode |
Local sound-light alarm + Mobile APP remote push |
|
Transmission Distance |
Indoor effective distance 30m (no obstacle) |
Application Fields
This LC-601 WiFi leak detector is professionally customized for thermal and heating pipe network systems, and is widely applicable to multiple scenarios. It covers residential and commercial water heater leakage monitoring, central heating pipe network node detection, heating equipment room water seepage monitoring, thermal pipeline buried section leakage early warning, and heat exchange station auxiliary equipment water leakage protection. It is suitable for real-time safety monitoring of heating systems in residential communities, commercial buildings, industrial parks and thermal power supporting facilities, effectively preventing pipeline water leakage from causing heating failure, floor flooding and equipment corrosion damage.
Installation Method

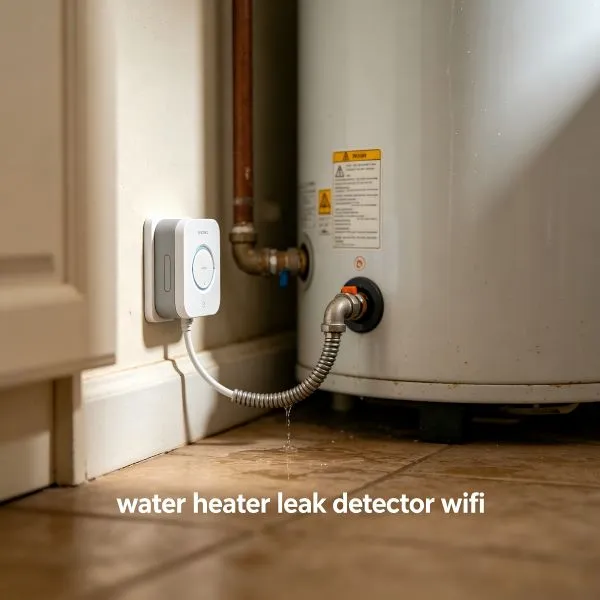

The LC-601 detector supports simple and flexible non-destructive installation without professional wiring. First, install the matched battery into the device and power it on. Place the high-sensitivity detection probe stably at the water heater bottom, pipeline joints, valve ports and other leakage-prone positions, and fix the main unit on a dry and ventilated nearby wall or equipment surface with adhesive tape or screws. Complete WiFi network matching via the supporting mobile APP according to the instructions. After successful network configuration, the device will automatically enter 24-hour real-time monitoring state. The whole installation process takes only 3-5 minutes, no professional construction required, convenient for on-site deployment and later position adjustment.
Customizable Options
1. Hardware Customization
Support probe length, detection angle, equipment shell size and waterproof grade adjustment; customized high-temperature resistant and anti-corrosion probes for high-temperature heating pipeline scenarios.
2. Functional Customization
Support alarm volume adjustment, timed detection, alarm record storage, multi-device linkage and SMS/email dual alert function expansion.
3. Software & Protocol Customization
Support docking with customer's private cloud platform and heating system management software; customized data transmission protocol and remote management authority configuration.
Why Choose Us
Professional Scenario Matching Advantage: Focus on thermal heating pipe network and water heater detection scenarios, tailor products for industry pain points, more targeted than universal leak detectors.
Integration of Standard & Customization: Sufficient standard product inventory for fast delivery, and support personalized customization for special working conditions, meeting differentiated customer demands.
Stable Product Quality & Cost-effective: Adopt industrial-grade core components, strict production testing, low failure rate and long service life, effectively reducing later maintenance and replacement costs.
Full Lifecycle Service: Provide pre-sales technical solution guidance, in-sales installation and debugging guidance, after-sales long-term technical support and warranty service, with professional and efficient one-stop service.
FAQ
Q: Does the LC-601 leak detector support 5G WiFi connection?
A: This detector supports stable 2.4GHz WiFi network, which has stronger wall-penetrating and anti-interference ability, more suitable for indoor and pipe well installation scenarios; 5GHz WiFi is not supported temporarily.
Q: Is professional installation required for the device?
A: No professional installation is needed. The product is plug-and-play with no wiring required. Users can complete installation and network configuration independently according to the user manual, saving time and labor cost.
Q: Can the device work normally in high-temperature heating environment?
A: The standard working temperature range is -10℃~+60℃, which can adapt to the conventional working environment of water heaters and heating pipe networks. For ultra-high temperature scenarios, we can provide customized high-temperature resistant versions.
Q: Will the alarm automatically stop after the leakage is repaired?
A: Yes. After the leakage is eliminated and the sensor probe is dry, the device will automatically reset, stop the alarm and return to real-time monitoring state without manual operation.
Q: Do you support OEM/ODM customization services?
A: Yes. We provide comprehensive OEM/ODM customization services including product appearance, function parameters, software system, logo packaging, etc., to meet customers' brand and personalized scenario needs.
