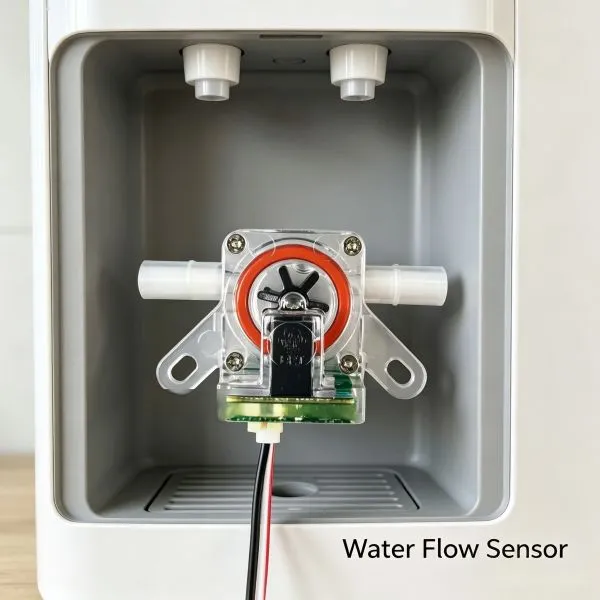

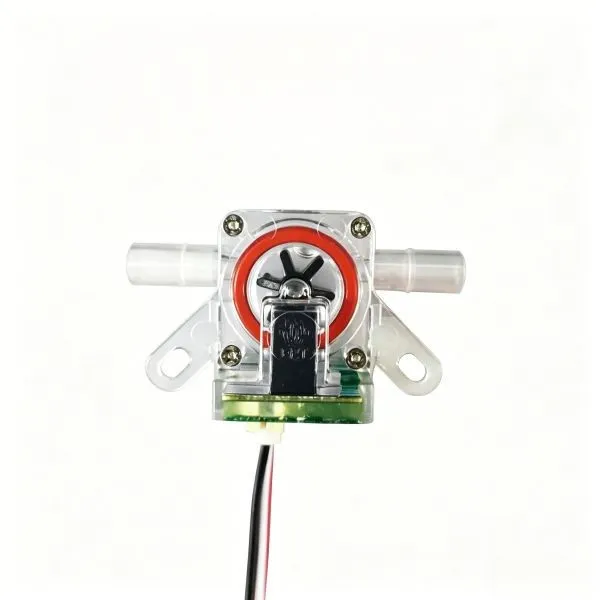

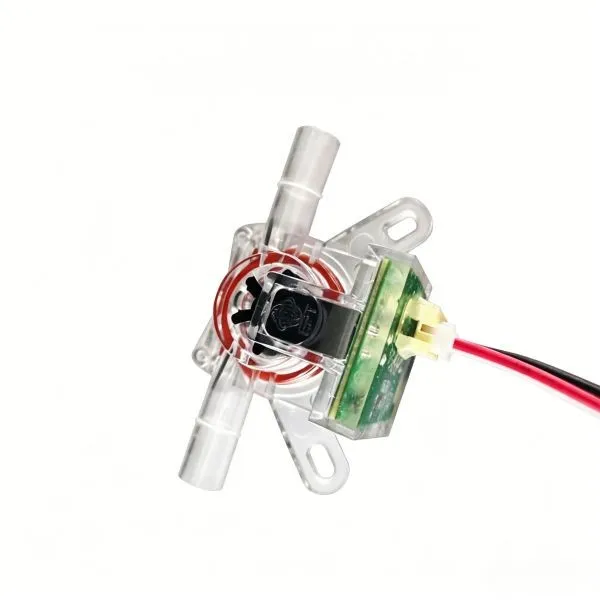

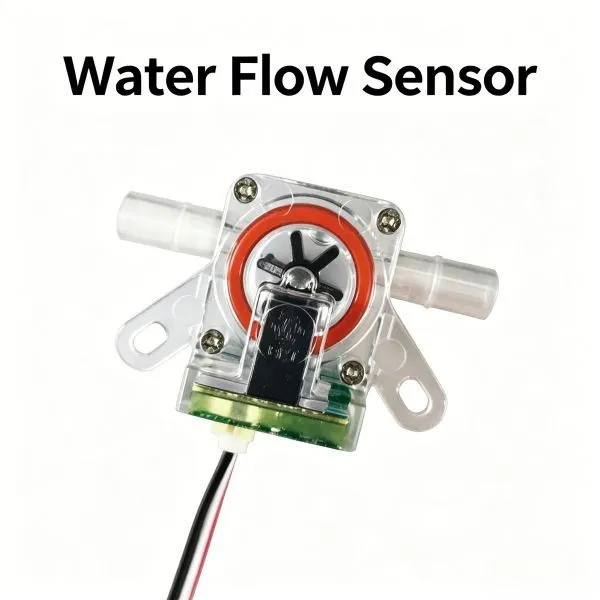

The FH-502 Hall Effect Sensor Water Meter is a heavy-duty, high-stability flow measuring device specially optimized for agricultural and garden irrigation scenarios. Adopting mature Hall electromagnetic induction sensing technology, this water meter accurately captures real-time water flow rate and cumulative water volume, solving the pain points of inaccurate metering and poor environmental adaptability of traditional irrigation flow equipment. Designed for long-term outdoor and field operation, it features dustproof, waterproof, anti-corrosion and anti-clogging properties. As a professional sensor manufacturer, we provide both standard mass-produced products and personalized customized services to match different irrigation pipeline specifications, intelligent irrigation systems and diversified farmland garden management needs, delivering reliable flow monitoring solutions for modern precision irrigation.
Product Features
Excellent Outdoor Environmental Adaptability
Tailored for agricultural and garden harsh working conditions, the meter supports stable operation in variable temperature, humid, dusty and outdoor open-air environments. It resists sun exposure, rain erosion and low-temperature frost, avoiding performance attenuation or failure caused by complex outdoor factors, ensuring continuous and effective flow monitoring throughout the four seasons.
Anti-Clogging & Low Water Pressure Start
Optimized wide-flow channel and low-resistance impeller structure effectively prevent blockage from sediment, fine impurities and algae in irrigation water. It achieves sensitive start-up under low water pressure, accurately capturing micro-flow water volume in trickle irrigation and drip irrigation scenarios, with no missing measurement or inaccurate counting.
High Precision & Stable Long-Term Metering
Equipped with high-sensitivity Hall effect sensing elements, the product converts impeller rotation into standard pulse signals stably. It features low zero drift and good repeatability, with accurate metering for long-term continuous irrigation work. It effectively avoids data deviation caused by frequent water flow fluctuation in farmland irrigation.
Durable & Low Maintenance Cost
The whole machine adopts high-strength anti-corrosion engineering materials and wear-resistant rotating components, with strong pressure resistance and aging resistance. It has a long service life in field irrigation systems, no frequent replacement and disassembly maintenance, greatly reducing the daily operation and maintenance cost of agricultural irrigation equipment.
Working Principle
The FH-502 Hall Effect Sensor Water Meter operates based on the physical Hall effect principle. When irrigation water flows through the internal flow channel, the water pressure pushes the built-in magnetic impeller to rotate synchronously. The rotating magnet changes the surrounding magnetic field periodically, and the built-in Hall sensor captures real-time magnetic field changes and converts them into continuous standard digital pulse signals. The pulse frequency is linearly proportional to the water flow speed and flow volume. The matched intelligent control system or controller calculates real-time instantaneous flow and cumulative water consumption by counting pulse signals. The optimized flow channel structure stabilizes water flow and reduces turbulent flow interference, ensuring the accuracy and stability of signal acquisition, realizing automatic and precise metering of agricultural irrigation water volume.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
FH-502 |
|
Measuring Flow Range |
1L/min - 30L/min |
|
Metering Accuracy |
±2.5% FS |
|
Working Voltage |
DC 3.3V - 12V |
|
Output Signal |
Hall Pulse Signal |
|
Working Temperature |
-20℃ - 70℃ |
|
Max Working Pressure |
1.0MPa |
|
Protection Grade |
IP67 |
|
Applicable Medium |
Clean Water, Ordinary Irrigation Water |
|
Service Life |
≥800,000 working cycles |
|
Interface Specification |
Standard G1/2 / Customizable |
Application Fields
The FH-502 Hall Effect Sensor Water Meter is specially developed for agricultural and garden irrigation scenarios, widely covering various precision irrigation and water volume monitoring fields. It is applicable to farmland drip irrigation, sprinkler irrigation, greenhouse intelligent watering, orchard irrigation, vegetable field planting irrigation, lawn and garden landscape watering, and urban greening irrigation projects. It can accurately count irrigation water consumption, support automatic water supply control and water-saving management, help agricultural planting realize quantitative irrigation, avoid water resource waste, and provide accurate data support for intelligent agricultural water-saving irrigation and fine planting management.
Installation Method
This water meter supports horizontal and vertical bidirectional installation, adapting to various on-site irrigation pipeline layouts. First, check the water flow direction mark on the sensor body to ensure consistent installation with the pipeline water flow direction. Connect the standard pipe interface with the irrigation pipeline, seal and fix it with thread tape or waterproof connector to prevent water leakage and loose falling off. Then connect the signal wire to the intelligent irrigation controller or data acquisition module, ensuring firm wiring and good waterproof insulation. After installation, open the water valve for pressure test to confirm no water leakage and normal signal output. The whole installation process is simple and efficient, suitable for large-scale on-site construction, pipeline renovation and later equipment replacement in agricultural and garden projects.
Customizable Options
To meet the differentiated construction and system matching needs of different agricultural and garden projects, we provide multi-dimensional personalized customization services:
1. Pipeline Interface & Size Customization
Support customizing different pipe diameters and interface types such as G1/4, G3/4, G1 and flange interfaces, adapting to various irrigation pipeline specifications and on-site installation space constraints.
2. Working Parameter Customization
Customize flow measuring range, start-up water pressure and signal output frequency according to the actual water pressure and flow demand of farmland, greenhouse and garden irrigation systems to achieve optimal metering accuracy.
3. Protection & Structure Customization
Provide upgraded waterproof, dustproof and anti-corrosion coating treatment, customized fixed bracket and anti-drop structure, adapting to more harsh outdoor field working environments.
Why Choose Us
Scenario-Oriented Professional Design We deeply understand the pain points of agricultural and garden irrigation metering such as easy blockage, poor outdoor adaptability and inaccurate micro-flow metering. All products are optimized and upgraded for industry scenarios, with stronger pertinence and higher practicability than universal flow meters.
Factory Direct Sales & High Cost Performance As a source manufacturer, we eliminate intermediate distributors. On the premise of ensuring high-standard quality and stable performance, we provide competitive factory prices and complete quality assurance, helping customers reduce overall procurement and operation costs.
Reliable Quality & Thoughtful After-Sales Service We provide 18-month long-term warranty and lifelong technical support. A professional technical team provides one-on-one installation guidance, parameter debugging and problem solving. Fast delivery and flexible after-sales response ensure the stable operation of customer projects.
Support Global OEM/ODM Cooperation We support exclusive logo customization, product parameter adjustment, structural optimization and packaging customization, providing personalized OEM/ODM supporting services for global agricultural equipment suppliers and irrigation engineering enterprises.
FAQ
Q: Is the FH-502 water meter suitable for outdoor open-air irrigation projects?
A: Yes. The product reaches IP67 protection grade, with excellent sun protection, rain protection, dust prevention and frost resistance. It can operate stably in outdoor open-air farmland, gardens and greening environments all year round, adapting to complex outdoor temperature and humidity changes.
Q: Can it work normally with irrigation water containing fine sediment?
A: The product adopts anti-clogging wide-flow channel and low-resistance impeller design, which can adapt to conventional irrigation water with fine sediment and impurities. It is not easy to block and ensures continuous and stable metering. For high-impurity water quality, we can provide customized anti-fouling and anti-blocking upgrades.
Q: What installation methods are supported?
A: It supports horizontal and vertical multi-angle installation, with no strict restriction on pipeline direction. It is compatible with most irrigation pipeline layouts on the market, featuring simple installation and strong on-site adaptability.
Q: Can the product be matched with intelligent irrigation control systems?
A: Absolutely. The product outputs standard Hall pulse signals, which can be perfectly connected with various intelligent irrigation controllers, PLC systems and data acquisition equipment to realize automatic water volume statistics and intelligent water supply control.
Q: Do you provide customized service for special pipeline and working conditions?
A: Yes. We provide full-scene customization services including interface size, flow range, protection grade and structural appearance. We support quick sample proofing and mass production to meet the personalized needs of different irrigation projects.
