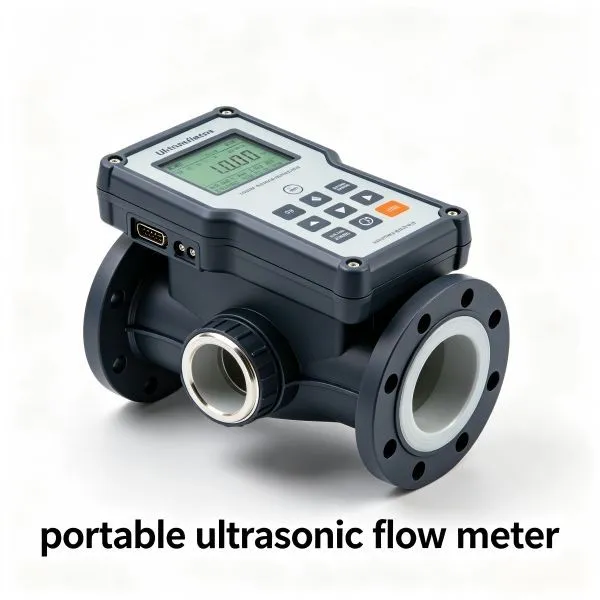

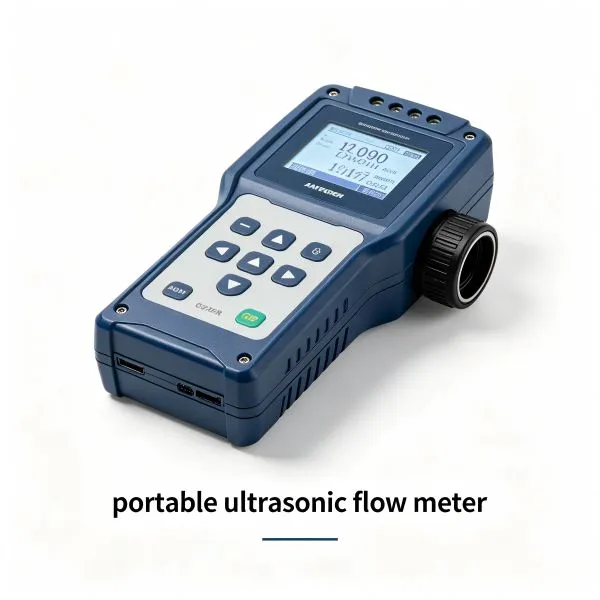

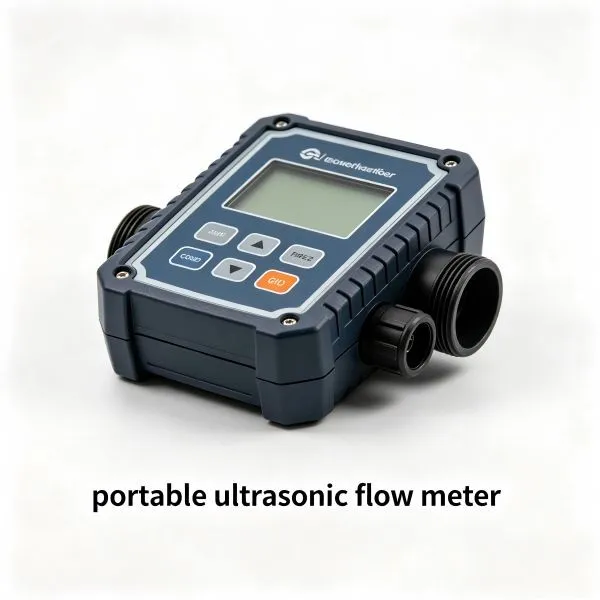

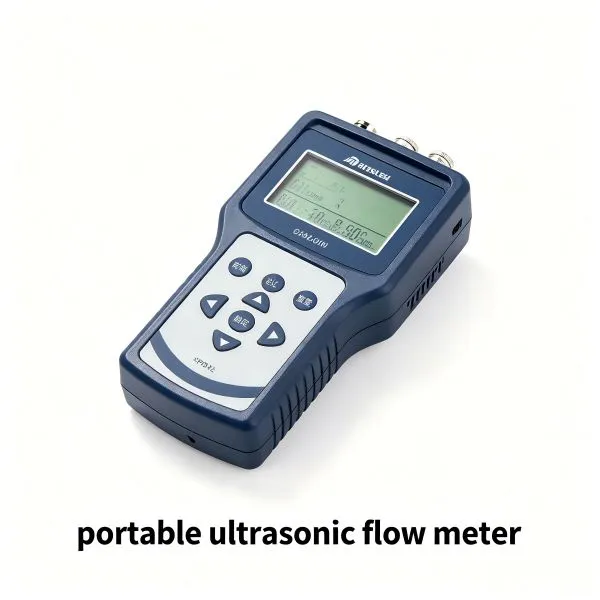

The FH-506 portable ultrasonic flow meter is a cost-effective, handheld non-contact flow measurement device independently developed and produced by our factory. Designed for on-site, temporary, and mobile liquid flow detection, this model balances premium measurement performance and reasonable portable ultrasonic flow meter price, making it ideal for bulk procurement, engineering projects, and industrial routine inspection. Adopting mature transit-time ultrasonic technology, it requires no pipe cutting or fluid shutdown during measurement, avoiding pipeline damage and production interruption. Lightweight, portable, and battery-powered, the FH-506 supports long-duration field operation. It is compatible with most common industrial pipeline materials and clean liquid media, featuring stable data output and strong environmental adaptability. As a versatile and budget-friendly flow measurement solution, it covers most conventional industrial flow testing scenarios and supports personalized customization to meet differentiated customer application needs.
Product Features
Non-contact & Zero Pipeline Damage
Adopts external clamp-on installation design, no need to cut, drill or modify the original pipeline. It will not affect fluid medium, pipeline pressure, and production operation, realizing completely non-destructive flow measurement, suitable for high-pressure and high-purity fluid pipelines.
High Measurement Accuracy & Stable Performance
Built-in high-precision ultrasonic chip and intelligent signal algorithm, with flow measurement accuracy up to ±1%. It effectively filters on-site electromagnetic interference and fluid turbulence interference, ensuring stable and repeatable test data in complex industrial environments.
Portable & Long Battery Life
Integrated lightweight handheld body, easy to carry and operate by a single person. Equipped with a high-capacity rechargeable battery, it supports 10–16 hours of continuous on-site operation, meeting long-time field inspection, pipeline debugging, and flow auditing requirements.
Wide Compatibility & Intelligent Data Recording
Compatible with various pipe materials including carbon steel, stainless steel, PVC, copper, and cast iron, covering DN15–DN6000 pipe diameter range. It supports real-time display of instantaneous flow, total flow, and fluid velocity, with automatic data logging function for later data analysis and export.
Working Principle
The FH-506 portable ultrasonic flow meter operates based on thetransit-time difference principle. Two ultrasonic sensors are clamped on the outer wall of the measured pipeline, installed at upstream and downstream positions respectively. The sensors alternately transmit and receive ultrasonic signals penetrating the pipeline and internal fluid. When the fluid is static, the propagation time of ultrasonic waves in upstream and downstream directions is consistent. When the fluid flows, the ultrasonic wave propagating along the fluid flow direction travels faster with shorter transit time, while the reverse ultrasonic wave travels slower with longer transit time. The device's internal microprocessor accurately calculates the fluid flow velocity and instantaneous flow rate by capturing the precise time difference between the two signal transmissions, and further accumulates the total flow volume, realizing real-time and accurate liquid flow measurement.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
FH-506 |
|
Measurement Principle |
Transit-time ultrasonic difference method |
|
Measurement Accuracy |
±1% (stable working condition) |
|
Pipe Diameter Range |
DN15mm – DN6000mm |
|
Applicable Pipe Materials |
Carbon steel, stainless steel, cast iron, copper, PVC, FRP, aluminum and other common pipe materials |
|
Applicable Media |
Clean or low-turbidity single-phase liquids (water, oil, industrial circulating fluid, etc.) |
|
Display Screen |
Backlight LCD digital display |
|
Data Interface |
RS-232, support data export and remote transmission |
|
Continuous Working Time |
10–16 hours (full battery) |
|
Operating Temperature |
-20℃ ~ +60℃ |
|
Protection Grade |
IP65 |
Application Fields
The FH-506 portable ultrasonic flow meter is widely used in all industrial fluid measurement scenarios, covering industrial production, municipal engineering, and energy detection fields. Typical applications include factory circulating water pipeline flow monitoring, petroleum and chemical liquid flow detection, HVAC water system debugging and energy audit, municipal water supply and drainage pipeline flow testing, food and beverage fluid pipeline inspection, metallurgical and power plant industrial fluid measurement, as well as pipeline flow troubleshooting, regular detection, and engineering acceptance. It is suitable for temporary testing, long-term monitoring, and batch pipeline flow calibration in various industrial scenarios.
Installation Method
This portable flow meter adopts a simple and fast external clamp-on installation method without pipeline construction or production shutdown. First, select a smooth and straight pipe section (avoid elbows, valves, and variable-diameter pipe sections) as the measurement point, clean the pipeline surface to remove dust, rust and oil stains. Then install the two supporting ultrasonic sensors on the outer wall of the pipeline according to the standard upstream and downstream spacing, fix the sensors with matching clamps, and apply a proper amount of coupling agent on the contact surface between sensors and the pipeline to ensure stable signal transmission. Finally, turn on the host power, set corresponding pipe diameter, pipe material and medium parameters, and the device can start real-time flow measurement immediately. The whole installation process takes only 3–5 minutes with no professional construction required.
Customizable Options
As a professional flow sensor manufacturer, we support full-scene personalized customization to match different user working conditions and budget demands:
1. Functional Customization
Customize high-temperature resistant sensors, anti-corrosion probes, enhanced anti-interference modules, and extended data logging functions for high-temperature, corrosive, and strong electromagnetic interference working environments.
2. Hardware Customization
Customize sensors for special pipe diameters, lengthen signal connecting lines, upgrade high-capacity batteries for ultra-long standby, and customize industrial-grade explosion-proof models.
3. Software & Output Customization
Support customized data output protocols, multi-language system interfaces, automatic report generation, and remote cloud data transmission functions to meet enterprise intelligent monitoring needs.
Why Choose Us
Cost-Effective Price & Transparent Quotation: As a direct manufacturer, there is no middleman markup. We provide favorable portable ultrasonic flow meter price for standardized products, and customized products are priced transparently according to functional and hardware configuration, with high overall cost performance.
Strong Adaptability & Stable Quality: The product has wide coverage of pipe diameters and media, strong anti-interference ability, stable operation in complex industrial environments, low failure rate, and long service life, reducing long-term replacement costs for users.
Flexible Customization & Fast Service: We support personalized customization for special working conditions, provide professional pre-sales technical scheme guidance, and support fast sample delivery and mass production delivery.
Worry-Free After-Sales Support: Provide long-term warranty, free technical guidance, installation training and remote debugging services, and solve product use and failure problems for customers in a timely manner.
FAQ
Q: What is the portable ultrasonic flow meter price of FH-506 model?
A: The specific price is affected by configuration, order quantity and customization demands. Our standardized FH-506 model has a very competitive factory direct price. We support bulk discount and provide free customized scheme quotation according to customer working conditions.
Q: What liquids can the FH-506 ultrasonic flow meter measure?
A: It is suitable for clean and low-turbidity single-phase liquids, including industrial water, circulating water, tap water, fuel oil, chemical solvent and other conventional media. It can be customized for special media such as high-temperature and corrosive liquids.
Q: Is professional installation training required?
A: No professional training is needed. The clamp-on installation is simple and fast. We will provide detailed English operation manual and installation tutorial video, and support remote one-on-one guidance.
Q: Can the product support long-term continuous on-site monitoring?
A: Yes. Besides portable temporary measurement, the FH-506 can be fixed on-site for long-term continuous flow monitoring, with automatic data recording and storage function, meeting daily industrial monitoring demands.
Q: Do you provide OEM/ODM customization services?
A: Yes. We support OEM brand customization, ODM functional and structural customization, and can provide exclusive product solutions according to customer market positioning and application scenarios.
