Introducing the FH-501 Hall Flowmeter Funnel, a robust solution engineered for precise flow rate detection in liquid dispensing systems. This sensor utilizes advanced Hall effect technology to convert the flow of liquid into electrical pulses. Available in multiple aperture sizes (1.0mm to 2.5mm), it offers accuracy levels of ±2%, ±3%, and ±5%. The device features a durable plastic housing with a funnel-shaped inlet and outlet, ensuring smooth fluid dynamics and minimal pressure loss. Designed for easy integration, it operates stably within a wide voltage range and is built to last with a rated life of 50,000 hours.
Product Features
High Measurement Accuracy & Stable Performance
Equipped with high-sensitivity Hall induction chips, the flowmeter delivers precise flow detection with low zero drift and excellent repeatability. It maintains stable measuring accuracy under different water pressure and temperature conditions, effectively avoiding measurement errors caused by fluid fluctuation, ensuring long-term consistent and reliable data output for household appliance fluid systems.
Integrated Funnel Integrated Design
The optimized integrated funnel structure integrates flow detection and fluid diversion functions, replacing complex split installation structures. The streamlined inner wall design reduces fluid resistance and avoids liquid residue, ensuring smooth fluid circulation while improving overall detection efficiency, which is more in line with the compact structural design requirements of household appliances.
Durable & Food-Grade Safe Material
The product adopts high-quality corrosion-resistant, high-temperature resistant engineering plastic and food-grade stainless steel optional materials, which are non-toxic, odorless and wear-resistant. It can adapt to long-term water flow impact and frequent start-stop working conditions, effectively resisting scale and corrosion, with a service life far exceeding traditional flow detection parts, meeting household appliance safety standards.
Strong Compatibility & Anti-Interference Ability
With built-in anti-electromagnetic interference and anti-water surge design, it can operate stably in complex household electrical environments without being affected by surrounding circuit signals. It is compatible with most mainstream household appliance control boards and intelligent systems, featuring wide voltage adaptation and strong environmental adaptability.
Working Principle
Turbine Rotation: As liquid flows through the funnel, it drives an internal turbine or impeller.
Magnetic Field Change: The rotating impeller has embedded magnets. As they spin, they create a changing magnetic field.
Signal Generation: A Hall sensor detects these magnetic field variations and generates corresponding electrical pulses.
Flow Calculation: The flow rate is directly proportional to the pulse frequency, allowing the host system to calculate the exact volume of liquid dispensed.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
FH-501 |
|
Measuring Range |
0.5L/min - 10L/min |
|
Measurement Accuracy |
±2% FS |
|
Working Voltage |
DC 3.3V - 5V |
|
Output Signal |
Pulse Signal |
|
Working Temperature |
0℃ - 80℃ |
|
Working Pressure |
≤0.8MPa |
|
Protection Grade |
IP65 |
|
Service Life |
≥500,000 times of start-stop cycles |
|
Material |
Food-grade ABS / 304 Stainless Steel (Optional) |
|

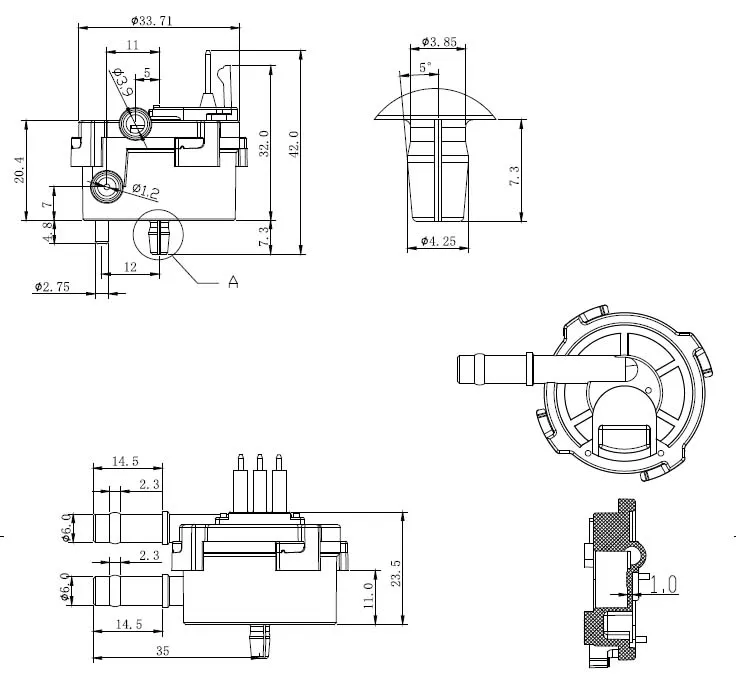

Installation Size |
Customizable Standard Interface |
Application Fields
This versatile Hall Flowmeter Funnel is the perfect choice for applications demanding precise liquid control:
Smart Coffee Machines: Accurately measures water volume for the perfect brew.
Vending Machines: Ensures precise dispensing of beverages and portion control.
Water Purification: Monitors water flow in RO systems and water dispensers.
Industrial Automation: Used in chemical dosing, coolant monitoring, and process control.
Installation Method
For optimal performance, please follow these installation guidelines:
Orientation: Install the flowmeter in the recommended direction (as per the arrow on the housing).
Piping: Connect the inlet and outlet nozzles securely to the fluid lines.
Wiring: Connect the wires according to the color code (typically Red: +V, Black: GND, Green/Signal: Output).
Precautions:
Ensure there is no air in the pipeline before operation.
Avoid reverse surge pressure.
Keep the fluid free from rapid pulse fluctuations.
Customizable Options
As a professional flow sensor manufacturer, we support full-dimensional personalized customization to meet customers' differentiated product design and application needs:
1. Structural & Interface Customization
Support customized funnel caliber, pipeline interface size, overall dimension and installation fixing structure to match different household appliance shell and pipeline layout designs.
2. Parameter & Performance Customization
Customize measuring range, signal output mode, accuracy level and pressure resistance parameters to adapt to special flow and pressure working conditions of different household appliances.
3. Material & Process Customization
Provide food-grade plastic, stainless steel and other different material configurations, and support surface polishing, anti-scale coating and other special process treatments to meet high-standard household safety requirements.
Why Choose Us
Professional Focus & Industry Experience We focus on the R&D and production of flow and liquid level sensors for household appliances for many years, deeply understanding the pain points of household appliance fluid control, and providing targeted high-precision and high-stability flow measurement solutions.
Superior Product Cost Performance Direct sales by the factory eliminates intermediate links. On the premise of ensuring high-quality standards and stable performance, we provide competitive factory prices and reliable quality assurance, helping customers reduce procurement costs.
Perfect After-Sales Service We provide 24-hour technical consultation, fast proofing, timely delivery and long-term after-sales warranty service. We have a professional technical team to solve customers' installation, debugging and product adaptation problems at any time, with reliable after-sales guarantee.
Flexible OEM/ODM Support We support customized OEM/ODM services for global customers, including exclusive logo printing, personalized parameter adjustment, structural optimization and package customization, to meet diverse business needs of customers.
FAQ
Q1: What is the operating voltage range of this Hall Flowmeter Funnel?
A: The sensor operates on a wide voltage range from 5V to embed 24V DC.
Q2: What is the output signal type?
A: It outputs a pulse signal based on the Hall effect principle. The frequency of the pulses corresponds to the flow rate.
Q3: What are the available accuracy options?
A: We offer three accuracy grades: ±2% (Type A), ±3% (Type B), and ±5% (Type C).
Q4: What is the maximum pressure the sensor can withstand?
A: The sensor has a pressure resistance of 0.1 MPa.
Q5: How long is the expected working life?
A: The sensor is rated for a working life of 50,000 hours under normal operating conditions.
