The UL-3L204 ultrasonic water tank level meter is a high-precision, non-contact liquid level monitoring device independently developed for real-time water tank level detection and intelligent water resource management. Adopting mature ultrasonic ranging technology, this meter effectively avoids contact corrosion, medium interference and equipment wear issues existing in traditional contact level sensors. Equipped with a built-in high-definition display screen, it supports on-site real-time viewing of level data with clear and intuitive readings. Compatible with Tuya smart APP intelligent linkage, the device realizes remote real-time data monitoring, automatic over-limit alarm and abnormal state reminder, enabling unattended intelligent management of water tanks. With a compact and integrated structure, low power consumption and stable operation, it supports standard 5V voltage power supply, covers a detection range of 0.1 to 3 meters, and is perfectly suitable for daily and industrial water tank level monitoring scenarios, delivering efficient, accurate and reliable level detection solutions.
Product Features
Easy Installation & Wide Adaptability Integrated modular design, small and light structure, no complicated wiring and debugging required. It supports top-mounted installation on various conventional water tanks, no damage to the tank body, and is compatible with most industrial and storage water tank specifications.
Non-contact High-precision Measurement
Adopts advanced ultrasonic time-of-flight detection technology, no direct contact with water medium. It eliminates failures caused by medium corrosion, scaling and liquid impact, ensures long-term stable measurement accuracy, and adapts to various clean water tank monitoring scenarios.
Tuya APP Smart Remote Monitoring & Alarm
Supports wireless connection with Tuya smart APP, realizing remote real-time viewing of water tank level data anytime and anywhere. Users can customize high and low level threshold values. The system will automatically push mobile phone alarm reminders when the level exceeds the limit, effectively preventing water overflow, dry tank and other hidden dangers.
On-site HD Digital Display

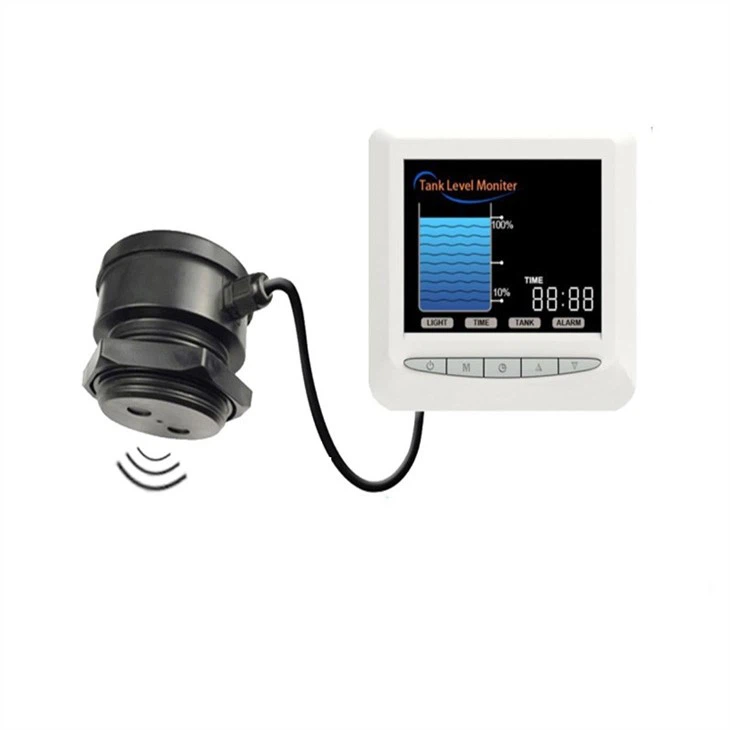

Comes with a built-in high-definition digital display screen, which can directly display real-time level height, detection status and equipment working parameters on site. The display is clear at a glance, no need for professional instruments to read data, convenient for on-site staff to quickly check and record.
Low Power Consumption & Strong Stability
Designed with optimized low-power circuit, compatible with 5V safe voltage power supply, energy-saving and environmentally friendly. Built-in intelligent signal filtering algorithm, which can effectively filter interference such as water surface fluctuations and tiny air currents, ensuring stable and consistent detection data without frequent data jumping.
Working Principle
The UL-3L204 ultrasonic water tank level meter operates based on the ultrasonic echo ranging principle. The ultrasonic probe emits high-frequency ultrasonic pulses vertically downward to the water surface of the tank. After the ultrasonic waves touch the liquid surface, they are reflected back to the sensor probe in the form of echoes. The internal high-speed processing chip accurately records the time difference between ultrasonic signal transmission and reception. Combined with the built-in temperature compensation algorithm, it corrects the influence of ambient temperature on ultrasonic propagation speed, and automatically calculates the real-time vertical distance from the sensor to the water surface, so as to obtain the accurate water tank level height. The measured data is synchronously displayed on the local display screen and uploaded to the Tuya APP in real time to realize intelligent monitoring and automatic alarm functions.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
UL-3L204 |
|
Detection Range |
0.1m - 3m |
|
Working Voltage |
5V |
|
Monitoring Function |
Real-time level detection, Tuya APP remote viewing |
|
Alarm Function |
Custom high/low level threshold, mobile APP remote alarm |
|
Display Mode |
Local HD digital display |
|
Measurement Principle |
Ultrasonic echo ranging + temperature compensation |
|
Installation Method |
Top-mounted installation |
|
Working Temperature |
-20℃ ~ +60℃ |

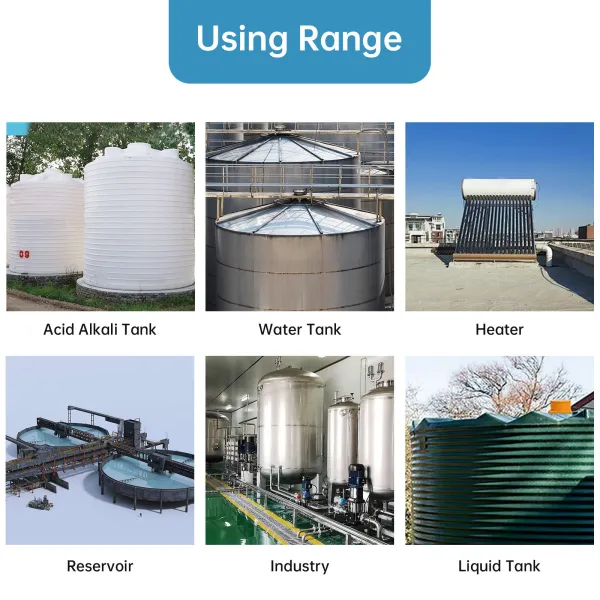

Application Fields
This UL-3L204 ultrasonic water tank level meter is professionally tailored for industrial and storage scenarios, widely applicable to industrial manufacturing and warehousing fields. It covers industrial production water supply tanks, circulating water tanks, fire reserve water tanks in factories, warehousing storage water facilities, and supporting water tank monitoring for industrial supporting equipment. It can realize 24-hour uninterrupted intelligent level monitoring for industrial production and warehousing storage systems, effectively solve the problems of inaccurate manual detection, delayed abnormal discovery and high management cost, and help enterprises realize refined and intelligent water resource management.
Installation Method

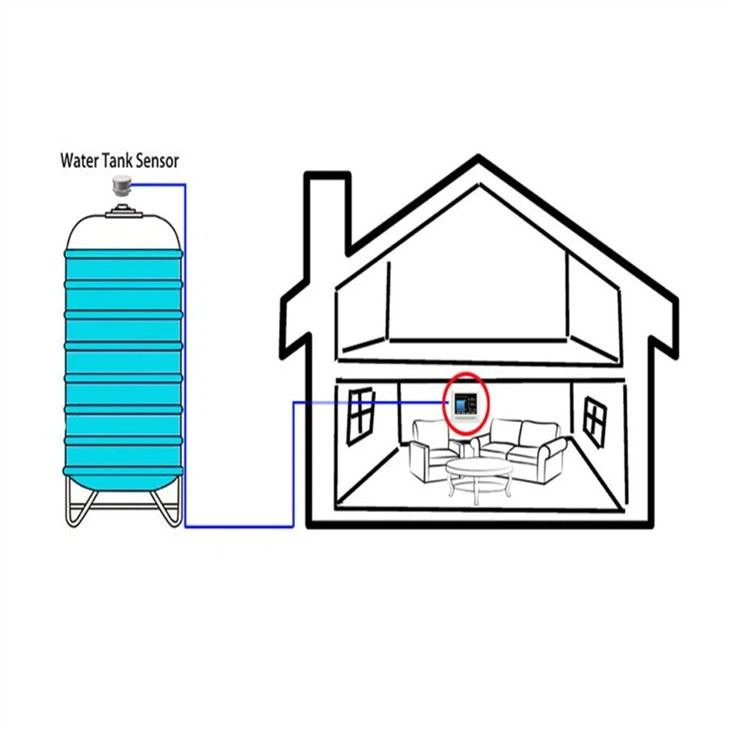

This product adopts top non-destructive installation, which is simple, fast and safe without drilling or damaging the water tank. First, select a flat and unobstructed position in the center of the water tank top to ensure no obstacles such as pipelines and brackets directly below the installation position, so as to avoid blocking ultrasonic signal transmission and affecting measurement accuracy. Fix the sensor vertically on the reserved installation hole or fixed bracket at the top of the water tank to keep the probe downward and parallel to the horizontal water surface. Complete the 5V power supply wiring, turn on the equipment power, and wait for the device to self-check and initialize. Finally, complete network configuration through Tuya APP, and it can realize real-time level monitoring and remote alarm functions. The whole installation process requires no professional tools and complex debugging, saving installation time and labor cost.
Customizable Options
As a professional level sensor manufacturer, we support full-scene personalized customization to meet the differentiated needs of different industrial customers:
Detection Range Customization
On the basis of the standard 0.1-3m range, support customized adjustment of detection distance to adapt to ultra-short or ultra-high water tank monitoring requirements of special industrial equipment.
Output Signal Customization
Support custom expansion of multiple signal output methods such as RS485, 4-20mA, to match different industrial PLC systems and remote monitoring platforms.
Structural & Protection Grade Customization
Customize sensor shell materials and IP protection grades according to harsh working environments such as high humidity, dust and corrosion.
Function Customization
Support customized alarm threshold default setting, data storage, timing upload, multi-terminal sharing and other extended functions to meet personalized intelligent management needs.
Why Choose Us
Intelligent & Efficient Management Integrates local display + Tuya remote monitoring + automatic alarm three core functions, realizing full intelligent unattended monitoring, greatly reducing manual inspection workload and enterprise operation costs.
Durable & Low Maintenance Cost Adopts non-contact ultrasonic detection design, completely isolating the sensor probe from water and humid air. It avoids corrosion, scaling and wear problems of traditional contact sensors, effectively extending service life. The built-in anti-interference algorithm ensures stable long-term operation with almost no daily maintenance, greatly reducing later operation and maintenance costs.

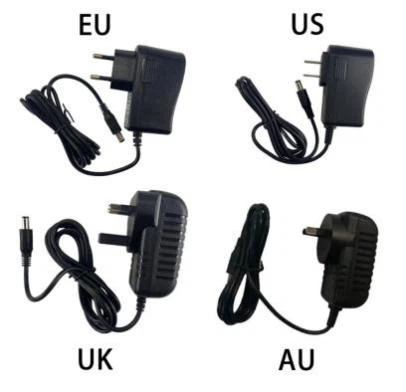

Safe & Low-voltage Operation Adopts standard 5V low-voltage power supply, which is safe, energy-saving and compliant with industrial low-voltage safety standards. There is no electric leakage risk during long-term water tank monitoring, suitable for long-term uninterrupted operation in various industrial and storage environments.
Flexible Customization & Strong Compatibility We support multi-dimensional personalized customization including detection range, signal output, shell protection grade and functional expansion. It can perfectly match various industrial water tank equipment and intelligent control systems, solving the adaptation problems of standard products in special working conditions.
Professional Factory & Full Lifecycle Service As a professional level sensor manufacturer, we have complete production and quality inspection systems. We provide one-stop services including pre-sales scheme customization, in-sales technical guidance and after-sales fault support, ensuring customers obtain high-quality products and professional technical services.
FAQ
Q: Is the UL-3L204 ultrasonic level meter suitable for all types of water tanks?
A: Yes. This device is specially designed for conventional industrial and storage water tanks. It is applicable to sealed, open, plastic and metal water tanks. The top-mounted non-contact installation mode will not damage the tank structure, and it can work stably in conventional clean water monitoring scenarios.
Q: Will water surface fluctuations or ambient air flow affect measurement accuracy?
A: Slight water surface fluctuations and normal air flow will not affect the detection results. The sensor is equipped with an intelligent signal filtering algorithm, which can automatically filter invalid interference echoes and stabilize output data. Only severe water surface surging and strong turbulent airflow will cause minor fluctuations, which can be solved by adjusting the installation position and height.
Q: How to realize remote alarm and data monitoring via Tuya APP?

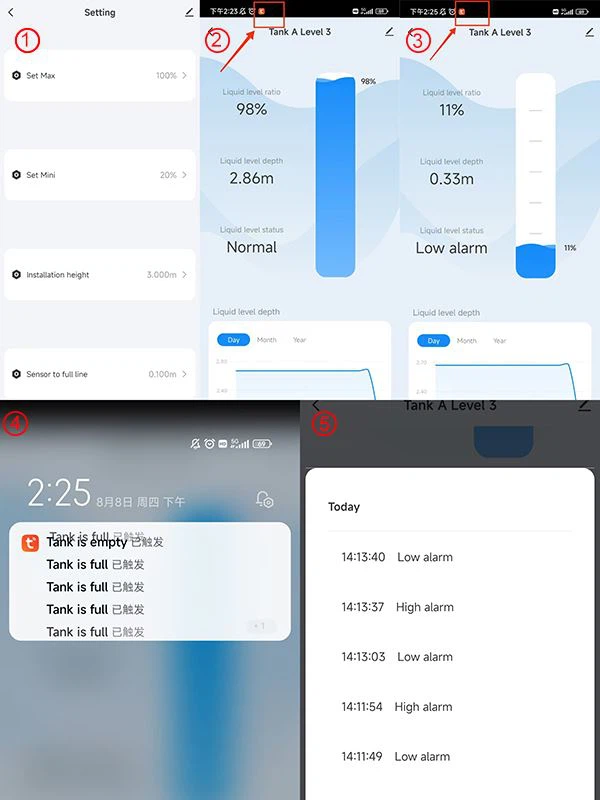

A: After completing device power-on and local initialization, users can scan the device QR code to bind the Tuya APP. After successful network configuration, real-time water level data will be automatically synchronized to the mobile terminal. Users can manually set high and low water level thresholds in the APP, and the system will push instant alarm notifications once the water level exceeds the preset range.
Q: Can this sensor support secondary development and industrial system docking?
A: Yes. On the basis of standard Tuya wireless transmission, we support customized expansion of RS485, 4-20mA and other industrial signal outputs, which can be perfectly connected with industrial PLC, host computer monitoring system and cloud platform to meet industrial automatic control and centralized management needs.
Q: What should I do if the displayed data jumps abnormally?
A: First, check whether the sensor is installed vertically and whether there are obstacles such as brackets and sundries directly below the probe. Second, confirm stable 5V power supply without voltage fluctuation. Finally, clean the probe surface and remove floating foam or sundries on the water surface to eliminate signal interference.
Q: Does the product support outdoor and high and low temperature working environments?
A: The standard working temperature of the product is -20℃ to +60℃, which adapts to most indoor and outdoor conventional industrial environments. For extreme high and low temperature, high humidity or dusty working conditions, we can customize enhanced protection grade and temperature-resistant shell to meet special scene needs.
Q: Do you support OEM/ODM customization and bulk order cooperation?
A: Absolutely. As a professional level sensor manufacturer, we provide full-scale OEM/ODM customization services, including product appearance, parameters, functions, logo and packaging customization. We support bulk wholesale, customized scheme development and long-term factory direct cooperation, with favorable factory prices and reliable delivery cycle.
