The US-3L203 Ultrasonic Depth Sensor is a high-precision, non-contact smart water level and depth monitoring solution independently developed for industrial intelligent monitoring scenarios. Adopting advanced ultrasonic detection technology and equipped with mature Tuya APP intelligent control system and LoRa wireless communication protocol, this sensor realizes long-distance, stable, and real-time depth data transmission and remote data viewing. Designed with a compact and industrial-grade waterproof structure, it supports a detection range of 0.1m to 3m and works stably with a 5V standard power supply. Free from the limitations of traditional contact measurement methods, it avoids liquid corrosion and equipment wear, delivering long-term reliable operation. Tailored for strict industrial scenarios such as food and pharmaceutical production, it supports both standardized batch supply and personalized customized services to meet diverse on-site monitoring demands of different customers.
Product Features
Intelligent LoRa Wireless & Tuya APP Remote Monitoring

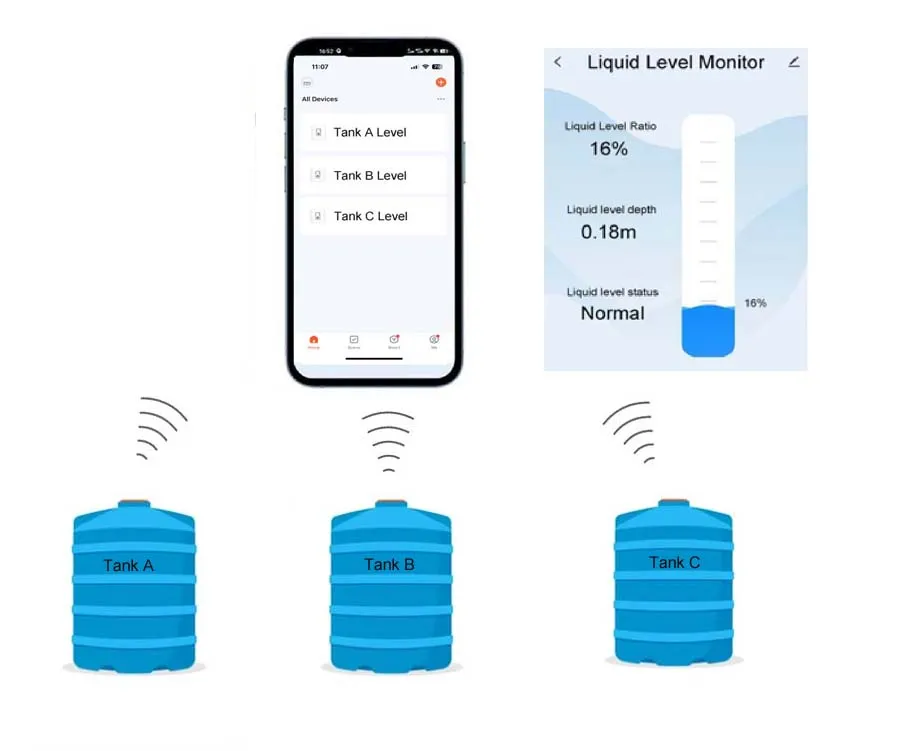

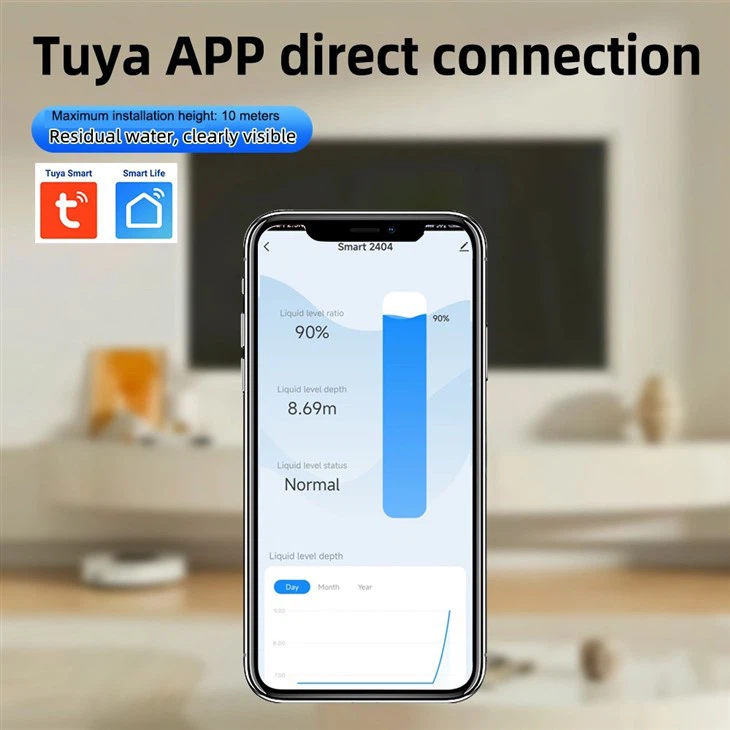

Built-in industrial LoRa communication module features ultra-long transmission distance, strong anti-interference ability and stable signal transmission, suitable for complex industrial environments. Matched with the Tuya smart APP, users can remotely view real-time depth data, historical monitoring records and equipment operating status anytime and anywhere, and support remote parameter configuration, realizing unattended intelligent monitoring.
High Precision & Wide Detection Range
Supporting a professional detection range of 0.1m to 3m, the sensor solves the blind spot problem of short-distance measurement. Adopting optimized ultrasonic signal processing algorithm, it effectively filters environmental interference such as water surface fluctuation and air flow, ensuring accurate and consistent depth detection data for a long time.
Non-contact & Corrosion-resistant Measurement
Different from traditional float and pressure sensors, it adopts non-contact ultrasonic detection, no direct contact with monitored liquid. It effectively avoids equipment corrosion, scaling and damage caused by long-term contact with food and pharmaceutical liquids, greatly extending service life and reducing maintenance costs.
Low Power & Easy Compatibility
Standard 5V low-voltage power supply design is safe and energy-saving, compatible with most industrial control systems and smart monitoring equipment. The simplified circuit structure and stable hardware performance ensure low failure rate, plug-and-play deployment, and lower overall application cost.
Working Principle
The US-3L203 ultrasonic depth sensor works based on the ultrasonic echo ranging principle. The sensor probe actively emits high-frequency ultrasonic pulses, which propagate through the air and reflect back when touching the liquid surface. The built-in high-sensitivity receiving module captures the reflected echo signal, and the core chip accurately calculates the distance between the sensor and the liquid surface by measuring the time difference between ultrasonic transmission and reception, combined with the built-in temperature compensation algorithm to correct the influence of ambient temperature on sound velocity. Finally, the converted water depth data is uploaded to the cloud platform through the LoRa wireless module, and users can check and manage the data in real time via the Tuya APP, realizing continuous and automatic depth monitoring.

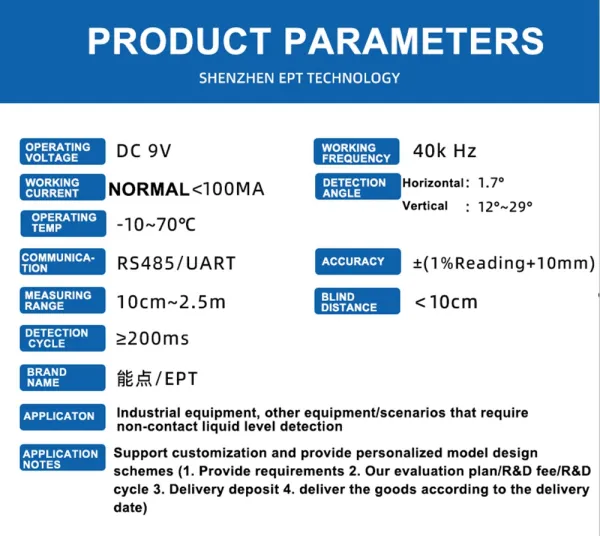

Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
US-3L203 |
|
Detection Range |
0.1m - 3m |
|
Working Voltage |
5V DC |
|
Communication Protocol |
LoRa + Tuya APP Smart Cloud |
|
Detection Method |
Non-contact Ultrasonic Ranging |
|
Application Scenarios |
Food & Pharmaceutical Industry |
|
Temperature Compensation |
Built-in Automatic Temperature Compensation |
|
Working Temperature |
-20℃ ~ +60℃ |
Application Fields

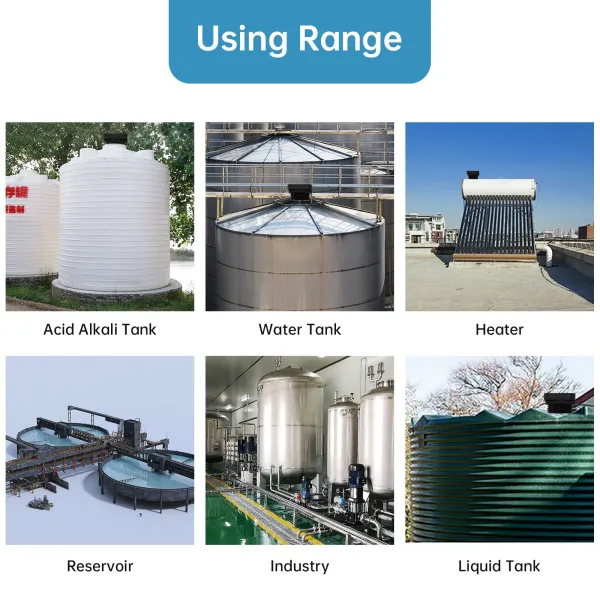

Focusing on the high-standard monitoring needs of the food and pharmaceutical industry, the US-3L203 ultrasonic depth sensor is widely used in multiple core scenarios. In the food industry, it is applicable to real-time liquid level monitoring of food processing water tanks, beverage storage tanks, fermentation tanks, and cleaning tanks, ensuring stable liquid level in food production processes and standardized production. In the pharmaceutical industry, it is used for depth monitoring of purified water tanks, reagent storage tanks, pharmaceutical fermentation equipment and sterile water supply systems. Its non-contact detection method avoids secondary pollution to pharmaceutical and food liquids, fully meets the hygienic and safety standards of the food and pharmaceutical industry, and provides accurate data support for intelligent production and quality control.
Installation Method

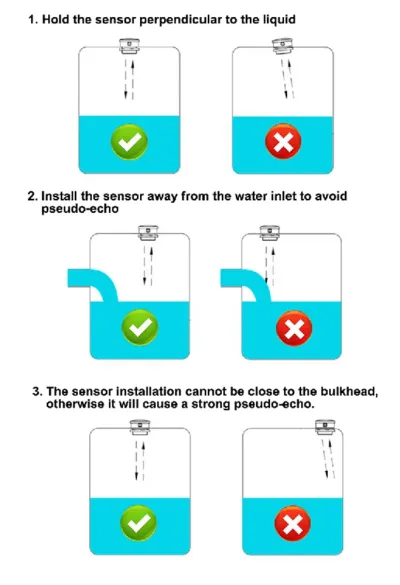

This sensor supports simple and flexible top-mounted fixed installation, suitable for most industrial tank and pool monitoring scenarios. First, select a flat and stable position directly above the monitored liquid level, ensure no obstacles within the sensor detection range to avoid signal blocking. Fix the sensor vertically with matching mounting brackets to keep the probe downward and parallel to the liquid surface. Complete the 5V power supply wiring according to the standard wiring diagram, and connect the LoRa communication module to complete network configuration. After power-on, match and bind the device through the Tuya APP, calibrate the zero point and detection range on site, and it can work normally. The whole installation process is simple and fast, no complicated construction is required, and it supports quick disassembly and maintenance.
Customizable Options
1. Hardware Parameter Customization
Support customized detection range, detection accuracy and response speed according to customer on-site working conditions, adapting to special liquid depth monitoring scenarios of different specifications.
2. Structural & Protection Customization
Provide customized probe waterproof grade, shell material and installation structure, support corrosion-resistant, high-temperature resistant and sterile upgraded versions to meet food and pharmaceutical sanitary grade requirements.
3. Function & Protocol Customization
Support secondary development of communication protocol, customized data upload frequency, alarm threshold setting, and exclusive Tuya APP interface customization to match customers' private monitoring systems.
Why Choose Us
Professional Industrial Customization Capability: Focus on sensor industry for years, deeply understand the pain points of water depth monitoring in food and pharmaceutical industries, and can quickly provide targeted customized solutions for different on-site working conditions.
Stable Product Performance & High Cost Performance: Adopt high-quality core components and optimized algorithm design, with stable detection data and strong environmental adaptability. While ensuring industrial-grade quality, we have competitive factory direct sales prices, eliminating intermediate links.
Intelligent & Easy to Use: Equipped with mature LoRa wireless transmission and Tuya intelligent cloud platform, the operation is simple, the data is transparent, and the remote intelligent management of equipment is realized, which is in line with the trend of industrial intelligent upgrading.
Reliable After-sales Guarantee: Provide long-term product warranty, free technical consultation, installation guidance and product after-sales maintenance services, with professional technical team online all the year round to solve problems quickly.
FAQ
Q: Is the US-3L203 sensor suitable for food and pharmaceutical sterile environments?
A: Yes. The sensor adopts non-contact detection mode, no direct contact with liquid, no secondary pollution. It supports sanitary-grade structural customization, which fully meets the sterile and hygienic monitoring requirements of food and pharmaceutical production scenarios.
Q: What is the advantage of LoRa communication compared with ordinary wireless communication?
A: LoRa communication has ultra-long transmission distance, strong anti-interference ability and stable signal, which can adapt to complex industrial plant environments with many obstacles, avoiding signal interruption and data loss, ensuring real-time and accurate data transmission.
Q: Does the sensor support remote data viewing and alarm reminder?
A: Yes. After binding the device via Tuya APP, users can view real-time and historical depth data remotely. Meanwhile, it supports customized upper and lower limit alarm thresholds, and the APP will push alarm reminders automatically when the data is abnormal.
Q: Is the installation of the sensor complicated? Does it need professional debugging?
A: The installation is simple and convenient, with standardized wiring and fixed installation. It only needs simple zero calibration after power-on and network matching, no professional debugging technology is required, and ordinary operators can complete the deployment independently.
Q: Can the product be customized according to special working conditions?
A: Absolutely. We support full-dimensional customization of detection range, accuracy, protection grade, structure, communication protocol and software functions to meet the personalized monitoring needs of different special working conditions.
