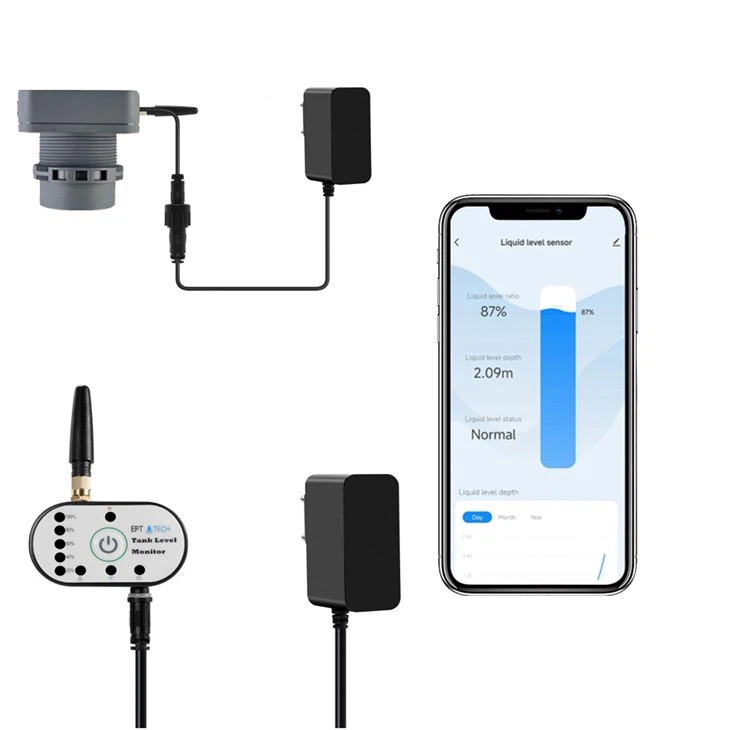

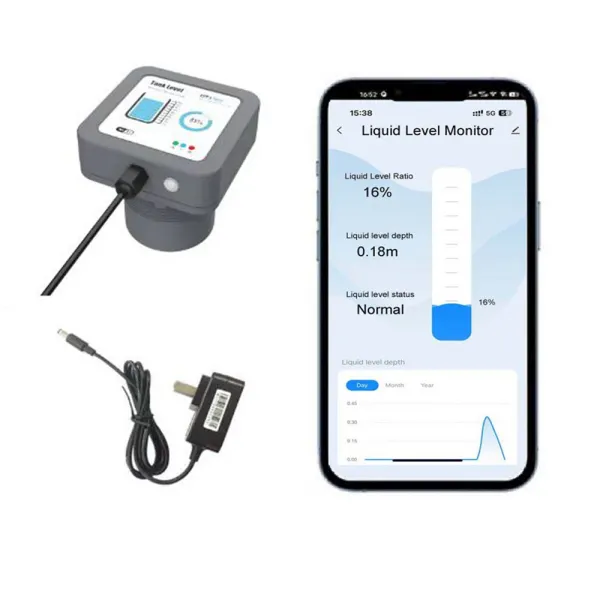

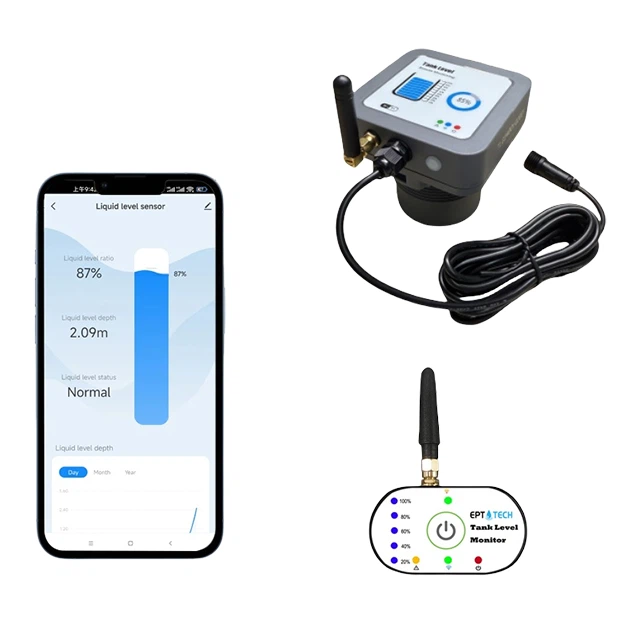

The US-3W202 ultrasonic tank sensor is a high-precision, wireless smart level monitoring device independently developed for tank liquid level detection and real-time data monitoring. Adopting mature ultrasonic non-contact measurement technology, this sensor effectively avoids medium corrosion, pollution and wear problems faced by traditional contact sensors. Equipped with dual power supply modes of solar panel and backup battery, it realizes long-term unattended operation without frequent manual charging. Paired with the intelligent Tuya APP, users can remotely view real-time tank liquid level data, set threshold alarms and check historical monitoring records anytime and anywhere. With a compact and integrated structure, wide measuring range and strong environmental adaptability, this sensor is suitable for various conventional and special tank monitoring scenarios, delivering stable, accurate and low-cost level monitoring solutions for water conservancy and municipal engineering projects.
Product Features
Dual Solar & Battery Power Supply, Ultra-Low Power Consumption
The US-3W202 sensor adopts an optimized low-power chip solution, supporting solar self-charging and built-in battery backup power supply. It can work continuously for a long time relying on natural light, eliminating frequent battery replacement and manual power maintenance, greatly reducing later operation and maintenance costs, and adapting to outdoor unattended working environments.
Tuya APP Intelligent Remote Monitoring
Compatible with the mainstream Tuya smart system, the sensor supports wireless data transmission. Users can remotely monitor real-time liquid level data, view data change curves, set high and low liquid level alarm thresholds, and receive mobile phone push alarms through the Tuya APP. It realizes intelligent, visualized and automated tank level management, no need for on-site manual inspection.
Non-Contact High-Precision Measurement
Utilizing ultrasonic non-contact detection technology, the sensor does not need to be in contact with the measured liquid medium, completely avoiding measurement failures or equipment damage caused by medium corrosion, scaling, blockage and liquid turbulence. It features stable measurement data and strong anti-interference ability, which can adapt to complex on-site working conditions.
Compact Integrated Design & Easy Deployment
The whole machine adopts an integrated compact structure with small size, light weight and good waterproof and dustproof performance. It has no complicated wiring and debugging procedures, supports rapid on-site installation and fixation, and is compatible with most standard water tanks, storage tanks and water storage facilities in water conservancy and municipal scenarios, with strong scene compatibility.
Working Principle
The US-3W202 ultrasonic tank sensor operates based on the ultrasonic echo ranging principle. The sensor probe actively emits high-frequency ultrasonic pulses outward, and the ultrasonic waves propagate through the air medium. When the waves touch the surface of the liquid in the tank, they will be reflected back to the sensor probe to form echo signals. The built-in high-precision processing chip accurately records the time difference between ultrasonic emission and echo reception. Combined with the real-time ambient temperature compensation algorithm, it calculates the vertical distance from the sensor to the liquid surface, and then converts the distance data into accurate liquid level height values. Finally, the processed level data is wirelessly transmitted to the Tuya APP terminal to realize real-time monitoring, data recording and over-limit alarm functions. The whole measurement process is non-contact, safe and stable, and is not easily affected by liquid density, color and other factors.
Product Parameters
|
Parameter Item |
Technical Specification |
|
Product Model |
US-3W202 |
|
Detection Distance (Measuring Range) |
0.1m - 3m |
|
Working Voltage |
5V |
|
Power Supply Mode |
Solar power + built-in battery backup |
|
Support System |
Tuya Smart APP (iOS/Android) |
|
Measurement Method |
Ultrasonic non-contact ranging |
|
Working Temperature |
-20℃ ~ +60℃ |
|
Data Transmission Mode |
Wireless transmission |
|
Application Medium |
Conventional non-corrosive liquid (water, etc.) |
Application Fields
This ultrasonic tank sensor is professionally oriented to water conservancy and municipal engineering scenarios, and is widely applicable to various liquid level monitoring scenarios in the industry. It covers municipal domestic water storage tank monitoring, rainwater collection tank level detection, water conservancy reservoir auxiliary level monitoring, pipeline buffer tank liquid level management, municipal sewage tank level early warning, and rural water supply tank intelligent monitoring. It can realize 24-hour automatic real-time monitoring of liquid levels for water conservancy infrastructure and municipal supporting facilities, helping engineering departments realize refined and intelligent water resource management, effectively prevent water overflow, water shortage and equipment idling problems, and improve the overall operation efficiency of water conservancy and municipal projects.
Installation Method
The US-3W202 ultrasonic tank sensor adopts top suspended fixed installation, which is simple, fast and firm with no complicated wiring. First, select a flat and unobstructed position in the center of the top of the monitored tank to ensure no shelter above the liquid level detection area, so as to avoid blocking ultrasonic propagation and affecting measurement accuracy. Second, fix the sensor on the top of the tank through the matching fixed bracket, keep the probe vertically downward and parallel to the liquid level, and ensure the probe is 0.1m above the maximum liquid level to avoid submergence. Finally, complete the simple power-on pairing with the Tuya APP. After successful network configuration, the sensor can start real-time level monitoring. The whole installation process does not require cutting the tank body or contacting the internal medium, with zero damage to the equipment and short construction cycle.
Customizable Options
As a professional sensor manufacturer, we support full-scene personalized customization to meet the differentiated needs of different projects and customers:
1. Customized Measuring Range
On the basis of the standard 0.1-3m range, we can customize extended or short-distance detection ranges according to customer tank height and on-site monitoring requirements to adapt to various non-standard tank equipment.
2. Customized Output & Transmission Mode
Support customizing wired and wireless signal output modes, adjustable data transmission frequency, and customized remote transmission distance to match different engineering monitoring systems and platform access requirements.
3. Customized Structural & Protection Grade
According to outdoor high-temperature, rainy, dusty and other harsh working environments, customize sensor shell protection grade, material corrosion resistance and fixed installation structure to improve environmental adaptability.
Why Choose Us
Intelligent & Low-Cost Operation Dual solar and battery power supply realizes energy-saving and self-sufficient operation, no frequent power supply maintenance. Cooperated with Tuya APP remote intelligent management, it greatly reduces manual labor costs and realizes low-cost and efficient level monitoring.
Stable & Accurate Detection Performance Adopting high-precision ultrasonic ranging chip and temperature compensation algorithm, the product has strong anti-interference ability and stable measurement data. The non-contact design avoids medium damage, ensuring long-term stable operation in complex engineering environments.
Simple Installation & Wide Compatibility Integrated lightweight design, no complicated wiring and debugging, fast on-site installation. It is compatible with most tank equipment in water conservancy and municipal engineering, with strong scenario adaptability and flexible deployment.
Reliable Quality & Customized Service Professional manufacturer's direct sales, eliminating intermediate links and ensuring cost performance. Support personalized customization of multiple parameters and structures, with perfect after-sales technical support, to provide customers with full-cycle product and solution services.
FAQ
Q: Does the sensor support long-term outdoor use in rainy and sunny environments?
A: Yes. The sensor has good waterproof, dustproof and sun-proof performance, adopts low-power solar power supply design, and can adapt to outdoor open-air working environments such as water conservancy and municipal projects, supporting long-term unattended operation.
Q: Is professional wiring and debugging required for installation?
A: No. The product is designed for wireless use with no complicated wiring. It only needs fixed installation and simple Tuya APP network configuration to complete commissioning, and ordinary operators can finish the operation independently.
Q: Can the product be customized for special engineering scenarios?
A: Yes. We support customized adjustment of measuring range, protection grade, transmission mode, structural size and other parameters, and can tailor exclusive monitoring solutions according to customer special tank conditions and project requirements.
Q: What is the power supply endurance of the sensor?
A: Equipped with solar self-charging + built-in battery backup, it can realize cyclic self-charging and power supply in the presence of light. It can work continuously for a long time without frequent charging, meeting the needs of long-term outdoor monitoring.
Q: Will liquid turbulence or foam affect the measurement accuracy?
A: The product has a built-in anti-interference filtering algorithm, which can effectively resist the interference of mild liquid turbulence and surface foam. It maintains high measurement stability and is suitable for conventional water body monitoring in engineering scenarios.
